Arduino with Pir Motion Sensor | Control Your Room Light by Motion Detection

Overview

In this tutorial, we will learn how to make automatic room light control by human motion detector using a PIR (Passive Infrared Sensor) sensor with Arduino.

You can watch the following video below:-

Components Required

The required components list for this project given below:-

• Arduino Uno
• Pir Motion Sensor
• 5V Relay Module
• AC Bulb
• Breadboard
• Some Jumper Wire

Pir Motion Sensor Pinout

The pinout of the Pir motion sensor has been given below:-

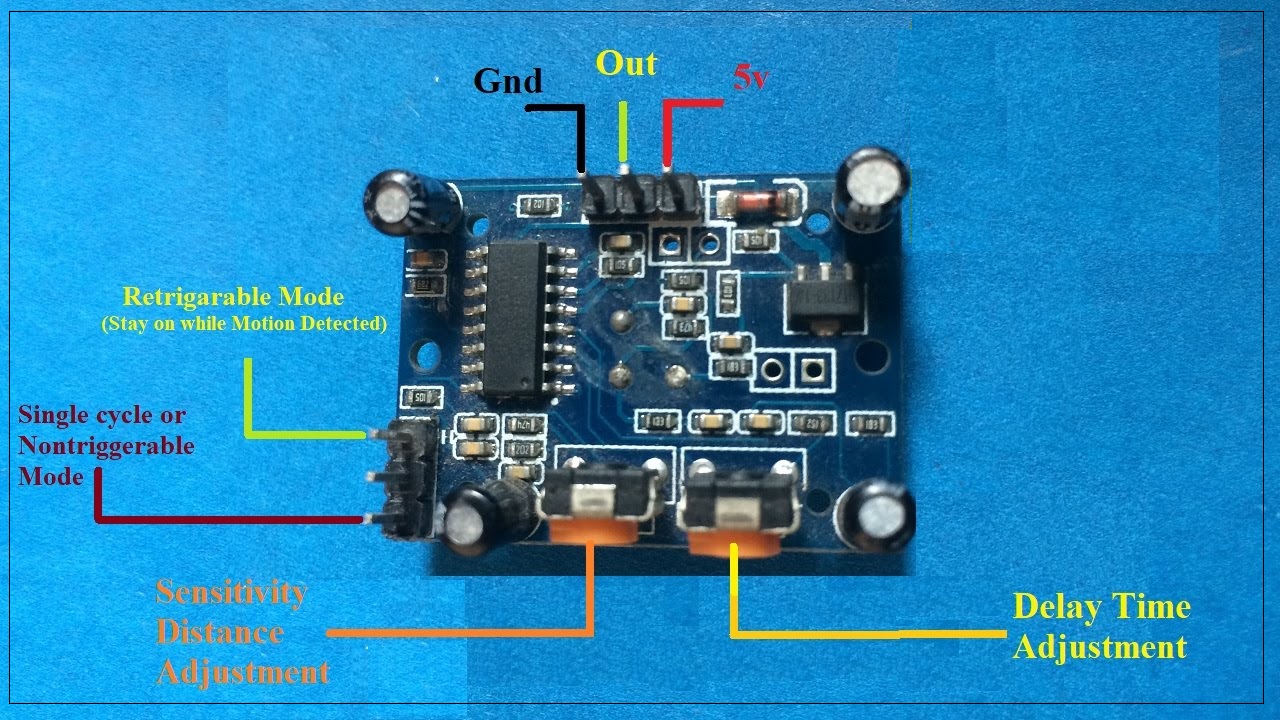

Fig: Pir Motion Pin Configuration

Circuit Schematic

The circuit diagram of the Pir motion sensor interfacing with Arduino has been given below:-

Fig: Pir Motion Sensor Interfacing with Arduino

Circuit Description

Source Code

The source code is given below:-

 boolean sensingLow = true;
 boolean takeSensingTime;

 int pirPin = 7;  //the digital pin connected to the PIR sensor's output
 int ledPin = 8;

 void setup(){
  Serial.begin(9600);
  pinMode(pirPin, INPUT);
  pinMode(ledPin, OUTPUT);
  digitalWrite(pirPin, LOW);

  Serial.print("calibrating sensor ");
   for(int i = 0; i < 10; i++){
    Serial.print(".");
    delay(1000);
    }
   Serial.println(" done");
   Serial.println("SENSOR ACTIVE");
   delay(50);
  }

 void loop(){

    if(digitalRead(pirPin) == HIGH){
     digitalWrite(ledPin, LOW);  //the led visualizes the sensors output pin state
     if(sensingLow){
     sensingLow = false;
      }
      takeSensingTime = true;
     }

    if(digitalRead(pirPin) == LOW){
     digitalWrite(ledPin, HIGH); //the led visualizes the sensors output pin state
     if(takeSensingTime){
     takeSensingTime = false;    //make sure this is only done at the start of a LOW phase
     }
     }
  }
